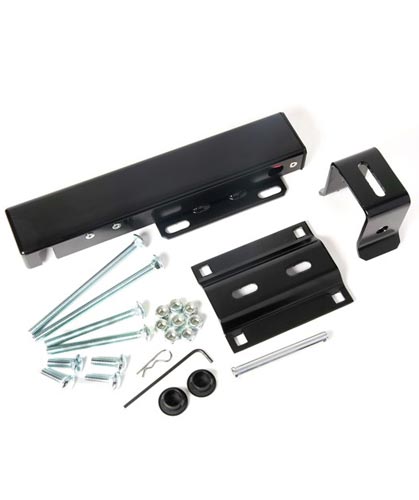

Accessories

SENTRY 2 BUTTON PREMIUM TRANSMITTER

SENTRY 4 BUTTON PREMIUM TRANSMITTER

ELECTRIC GATE LOCK

PHOTO EYE KIT

7 DAY TIMER (PROGRAMMABLE)

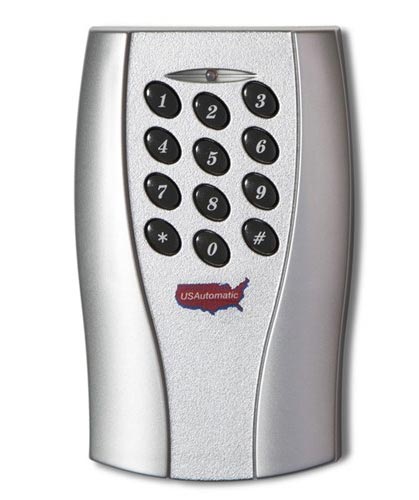

WIRELESS KEYPAD (PLASTIC)

WIRELESS KEYPAD (METAL)

FREE EXIT SENSOR (100 FEET)

WIRELESS PUSH BUTTON

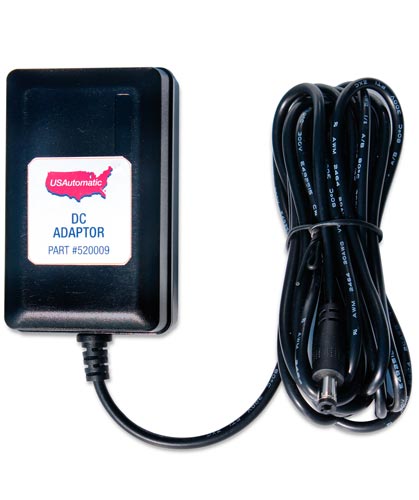

TRANSFORMER

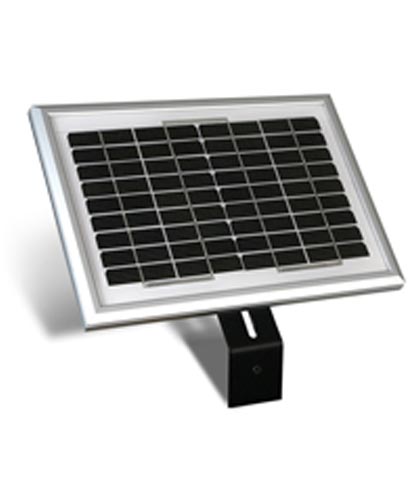

SOLAR PANEL KIT

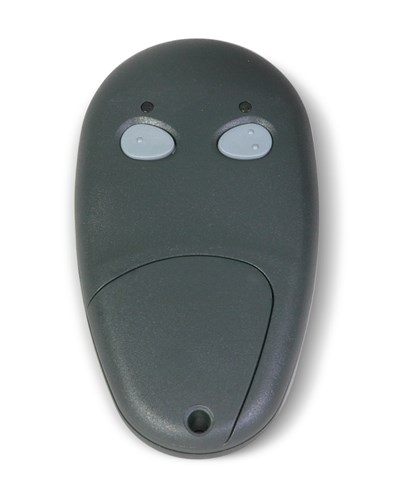

WIRELESS REMOTE (2 BUTTON)

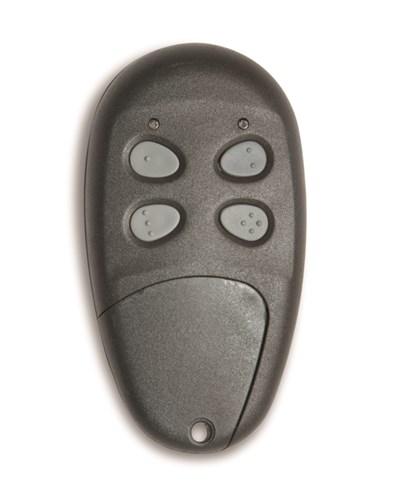

WIRELESS REMOTE (4 BUTTON)

ACCESSORY WIRING INFORMATION

All accessories must be 12 VDC compatible and have less than a 10ma current draw in stand by mode. Solar Friendly accessories recommended will have less than a 2ma current draw in stand by mode.

These devices will typically all wire as described below:

+12 VDC power will connect to J2 pin 1
Accessory ground will connect to J2 pin 2
The common for the accessory relay common is a ground connection connect to J2 pin 2

The accessory relay N/O is the command line and will connect to the input of the control board that provides the function desired from the accessory being installed. For example if a photo eye is being wired for safety (keep gate from closing on a car) then it connects to J2 pin 5. If this device was being installed to Open the gate when activated it would wire to J2 pin 3.
